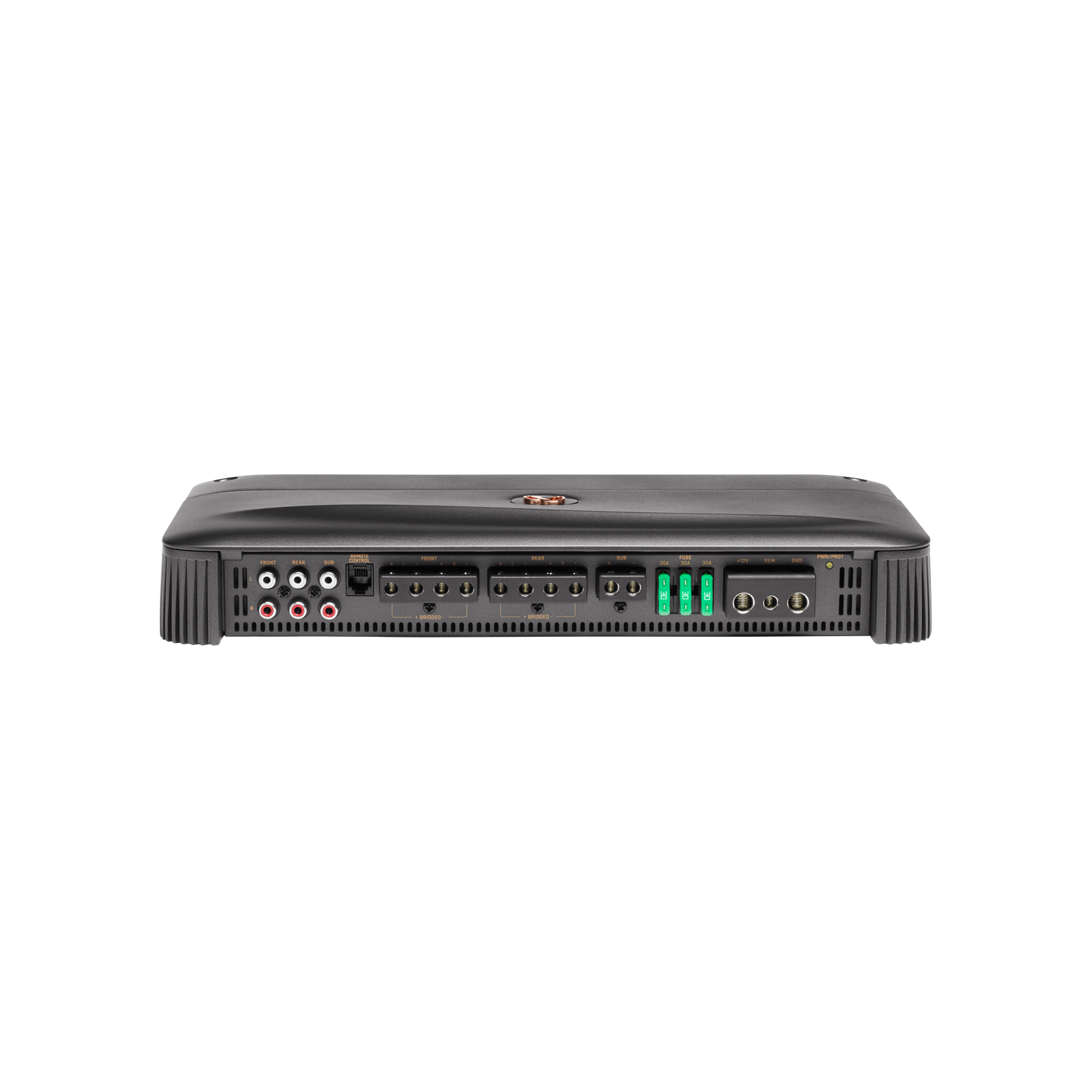

Infinity Reference 7005A 5-channel amplifier
Infinity's Reference 7005A 5-channel amplifier provides a full system solutions without breaking a sweat, and it'll look good doing it. It delivers 50-Watts RMS to each of the front and rear speakers, and a ground pounding 500-Watts RMS to the subwoofer channel — a much better balance of "speaker-to-sub" power than most of conventional 5-channel amplifiers on the market. For higher output, you can bridge the amp to 3-channel mode and power your front speakers with 140-Watts per channel, while still delivering 500-Watts to the subwoofer channel. Speaker-level inputs allow the Reference 7005A to work in almost any system, even if you're keeping your factory radio. Separate high-pass and low-pass crossovers on the front and rear channels and dedicated low-pass crossover, bass boost, and phase switch for the subwoofer channel provides an incredible amount of control and tuning capability. The Reference 7005A is truly a total system solution in one easy to install chassis.
Specifications
Features
50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel
bass boost on subwoofer channel (0-12dB at 45Hz)
phase switch on subwoofer channel (0, 180 degrees)
preamp and speaker-level inputs
fuse rating
30A x 3
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
WxHxD=360mm x 55.5mm x 180mm WxHxD=14-3/16” x 2-3/16" x7-1/8”
