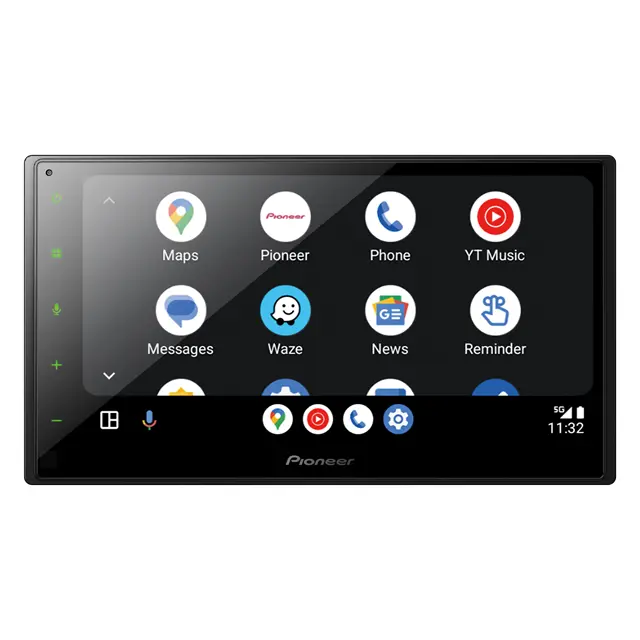

Pioneer DMH-A4550BT 6.8″ AV RECEIVER
6.8” Capacitive Touch-Screen
• Apple CarPlay (Wired Connection)
• Android Auto (Wired Connection)
• Bluetooth
• Reverse Camera InputOverview
Getting the latest technology doesn’t have to break the budget with the Pioneer DMH-A4550BT featuring the very best in automotive smartphone technology, including Apple CarPlay®, Android Auto™, Bluetooth®, plus reverse camera input.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, FM/AM tuner, or Bluetooth music streaming, Android Smartphone mirroring* (2-way via cable connection) all controlled from a large, highly detailed 6.8-inch capacitive touch screen.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 Pre-outs (FRT, RR & SW). No matter what, we have you covered!
| Display | |
| Screen Size | 6.8" |
|---|---|
| Resolution | WVGA (800 x 480) |
| Touchscreen | Capacitive |
| LED Backlight | Yes |
| Colour Customisation | 5 Key Illumination Colors |
| Bluetooth | |
| Built-in Bluetooth | Yes |
| Dual Phone Connection | No |
| Hands-Free Profile (HFP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes |
| Advanced Audio Distribution Profile (A2DP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Smartphone Pairing Memory | 5 Devices |
| Tuner | |
| AM/FM Tuner | Yes |
| DAB+ Tuner | No |
| Presets | 18 FM, 12 AM |
| Best Station Memory (BSM) | Yes |
| Local Seek Tuning | Yes |
| RDS | Yes |
| Smartphone Integration | |
| Apple CarPlay™ | Yes (Cable) |
| Android Auto™ | Yes (Cable) |
| Alexa Built In | No |
| Smartphone App | No |
| Spotify® Control | Yes (via CarPlay / Android Auto) |
| WebLink® | No |
| Live Information | No |
| Siri® Eyes Free | Yes |
| Web Browser | No |
| Digital Media Playback | |
| CD/CD-R/CD-RW Playback | No |
| DVD/DVD-R/RW/DVD-Video Playback | No |
| MP3 Audio Playback | USB |
| WMA Audio Playback | USB |
| AAC Audio Playback | USB |
| WAV Audio Playback | USB |
| FLAC Audio Playback | USB |
| MPEG-4 Video Playback | USB |
| DivX Video Playback | No |
| WMV Video Playback | USB |
| JPEG Photo Slideshow Viewer | USB |
| Full HD Video Playback | USB |
| Audio | |
| Hi-Res Audio Certified | No |
| RCA Pre-outs | 3 pair, 2V (front/rear/subwoofer) |
| Built-in Amplifier | MOSFET 4 x 50W |
| Auto EQ & Time Alignment (CD-MC20 required) | No |
| Specialized Audio Parts | No |
| D/A Converter | |
| Crossover Network | HPF/LPF |
| 3-Way Audio Network Mode | No |
| Subwoofer Control | Yes |
| Advanced Sound Retriever | No |
| Manual Time Alignment | No |
| Equalizer | 13 Band Graphic EQ |
| Expandability | |
| iDataLink Maestro | No |
| Wi-Fi Connectivity | No |
| USB | Single Rear Type-A |
| AUX | Rear (Audio/video) |
| Reverse Camera Input | Yes |
| Parking Assist Guidelines | Yes |
| Wired Remote Input | Yes (Learning) |
| HDMI | No |
| Composite Video Output | Yes (Cable Sold Separately) |
| General | |
| Remote Control | No |
| Warranty | 12 Month |
| Chassis Size | 2 DIN (125mm Depth) |
