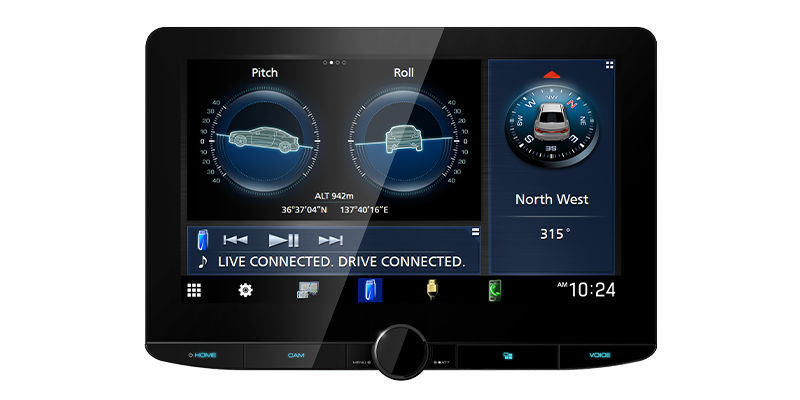

Kenwood DMX9724XS Monitor with Receiver 10.1" Digital Multimedia Receiver
$1,899.00Price
- 10.1" High Definition Monitor with Capacitive Touch Panel
- Floating Panel Mechanism with 4-way Position Adjustment
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay
- High-Resolution Audio Wireless
- Wireless Mirroring for Android
- 4 Camera Inputs
- HD Front & Rear Camera Ready
- Built-in Bluetooth
- 3 Preouts 5V / Digital Optical Output
General Specifications
Technical Specs
| Picture size | 10.1 inches(diagonal) wide | |
|---|---|---|
| W x H | 223.7 x 125.8 (mm) | |
| Display system | LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 2,764,800 | |
| 1280H x 720V x RGB | ||
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| USB I/F Section |
Connector Type | Type-C |
| USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32, exFAT, NTFS | |
| Maximum Power Supply Current | DC5V=3.0A | |
| D/A Converter | 24/32Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Frequency response | ||
| 192k Sampling | 20 - 88,000 Hz | |
| 96k Sampling | 20 - 44,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.01% | |
| Signal to Noise ratio | 98.5dB | |
| Dynamic range | 89dB | |
| Wireless Mirroring Section |
Mode | Sink |
| Copyright protection | HDCP2.2 | |
| Touch Control | UIBC | |
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Channels | Auto(1-11ch) | |
| Auto(149,153,157,161ch) | ||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | |
| 11g: 54 Mbps / 11n: 300 Mbps / | ||
| 11ac: 867 Mbps | ||
| Output Power (E.I.R.P.)(MAX) 2.4GHz/SISO | 11b:8dBm / | |
| 11g:3dBm / | ||
| 11n(20MHz):3dBm | ||
| Output Power (E.I.R.P.)(MAX) 5GHz/SISO | 11a:3dBm / | |
| 11n(20MHz):3dBm / 11n(40MHz):3dBm / |
||
| 11ac(20MHz):3dBm / 11ac(40MHz):3dBm / 11ac(80MHz):3dBm |
||
| Output Power (E.I.R.P.)(MAX) 5GHz/MIMO | 11n(20MHz):4dBm/ 11n(40MHz):5dBm / |
|
| 11ac(20MHz):4dBm / 11ac(40MHz):5dBm / 11ac(80MHz):4dBm |
||
| Bluetooth Section |
Technology | Bluetooth Ver5.2 |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.)(MAX) | -11dBm, Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC / LDAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.7) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.6) (Audio/Video Remote Control Profile) | ||
| PBAP (Phonebook Access Profile) |
